Broadcast Controls Inc.

Cable Program Substitution

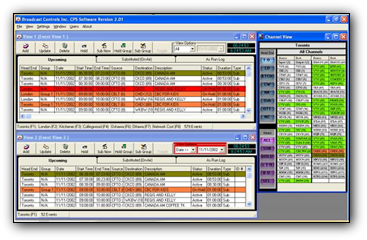

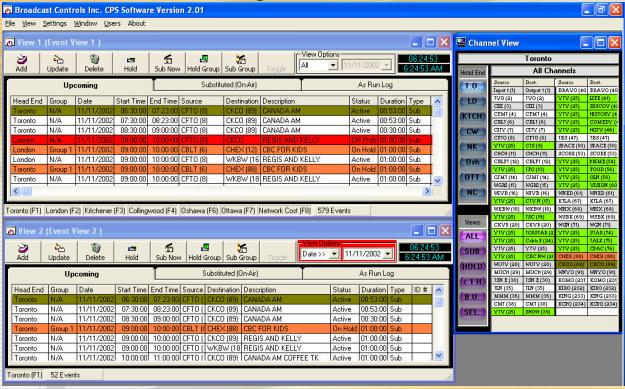

The Cable Program Substitution (CPS) software has been designed to meet the rigorous demands of multiple head-end cable substitutions. The software consists of two applications. The first is a server application that holds the list of events and hardware drivers to control your hardware. The second application is the client application that accesses the servers over your LAN or WAN. Each client can display eight views of twelve different head-ends with the ability to superimpose more than one head-end on the same view. Grouping of events from different geo-ranges can be accomplished so a single operator can easily control multiple centres with just a couple of clicks. Each server can communicate with 32 clients simultaneously with built-in security and user privileges. Overall channel views (current status) of each centre are also provided. With the advent of digital transport streams, BCI has expanded the portfolio of drivers. Redundant switching has become a major concern amongst engineers and BCI has addressed this with the ability to switch six transport streams from a single operator-initiated switch. These switches can be used for backup and/or picture-in-picture streams (PIP's) across different hardware platforms. The CPS application was exclusively designed for Canadian Simultaneous Substitution.

Features:

- Controls multiple head-ends from one or more locations

- Directly imports MediaStats files

- Stores thousands of events for each headend

- Overall channel view for current channel status

- Channel status updated immediately regardless of how the router was changed

- As-run logging

- Up to eight physical routers for each head-end with either the same or different formats (analog, IF, HD, SDI, etc)

- Supports switching of digital transport stream with full redundancy and picture-in-picture substitution as well

-Supports ASI and or IP

- Built-in redundancy if your network fails (events continue to execute)

- MediaStats conversion utilities

- Each client can communicate with twelve unique head-ends simultaneously

- Event views can be filtered based on status, date, problems, etc.

- The server is capable of 32 client applications

- Customizable colors and labels throughout

- Multiple level security and user privileges
