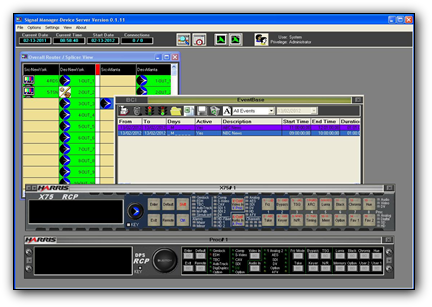

Signal Manager
The Signal Manager software has been designed to meet the rigorous demands of multiple head-end cable substitutions. The software can be utilized for sports blackout or any other substitution requirements. The user has the ability to manually control switches or to fully automate switches based on a schedule. The services can be divided into regions to easily identify which signals are going to which city. Icons, labels and colors are configurable throughout. A single scheduled event can hold eight compound switches within allowing the grouping of common programs. The software supports a variety of switching hardware products and allows for segmenting of a single device into geo-ranges. User privileges can be assigned on a destination-by-destination basis with each user belonging to a group. Overall routing views (current status) of each centre are also provided.
Features:
- Controls multiple head-ends from one or more locations
- Directly imports scheduled Excel files
- Stores thousands of events for each head-end
- Overall status view for current channel routing
- As-run logging
- Up to eight physical routers with either the same or different formats (analog, IF, HD, SDI, etc.)
- Supports up to 8 splicer units with 512 services each for ASI/IP switching
- Client software options for more points of control
- EventBase views can be filtered based on status, date, problems, etc.
- The server is capable of 32 client applications
- Customizable colors and labels throughout
- Multi-level security and user privileges
Optional Drivers
Cap-1000™

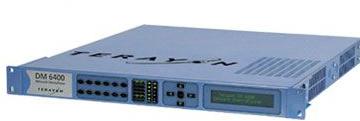

DM-6400™
ICE
BNP 2XR
BNP 3XR
VMG
TMX-2010™
Supported Drivers:
- Arris CAP-1000™
- Arris DM-6400™
- Imagine Communication SelenioICE™
- Imagine Communication Selenio™ BNP 2XR (RGB Networks)
- Imagine Communication Selenio™ BNP 3XR (RGB Networks)
- Imagine Communication Selenio™ VMG (RGB Networks)
- Motorola TMX-2010™
Frame Sync Drivers:
- DPS 575™
- Imagine Communications x75™
- Imagine Communications x85™
